Create an app

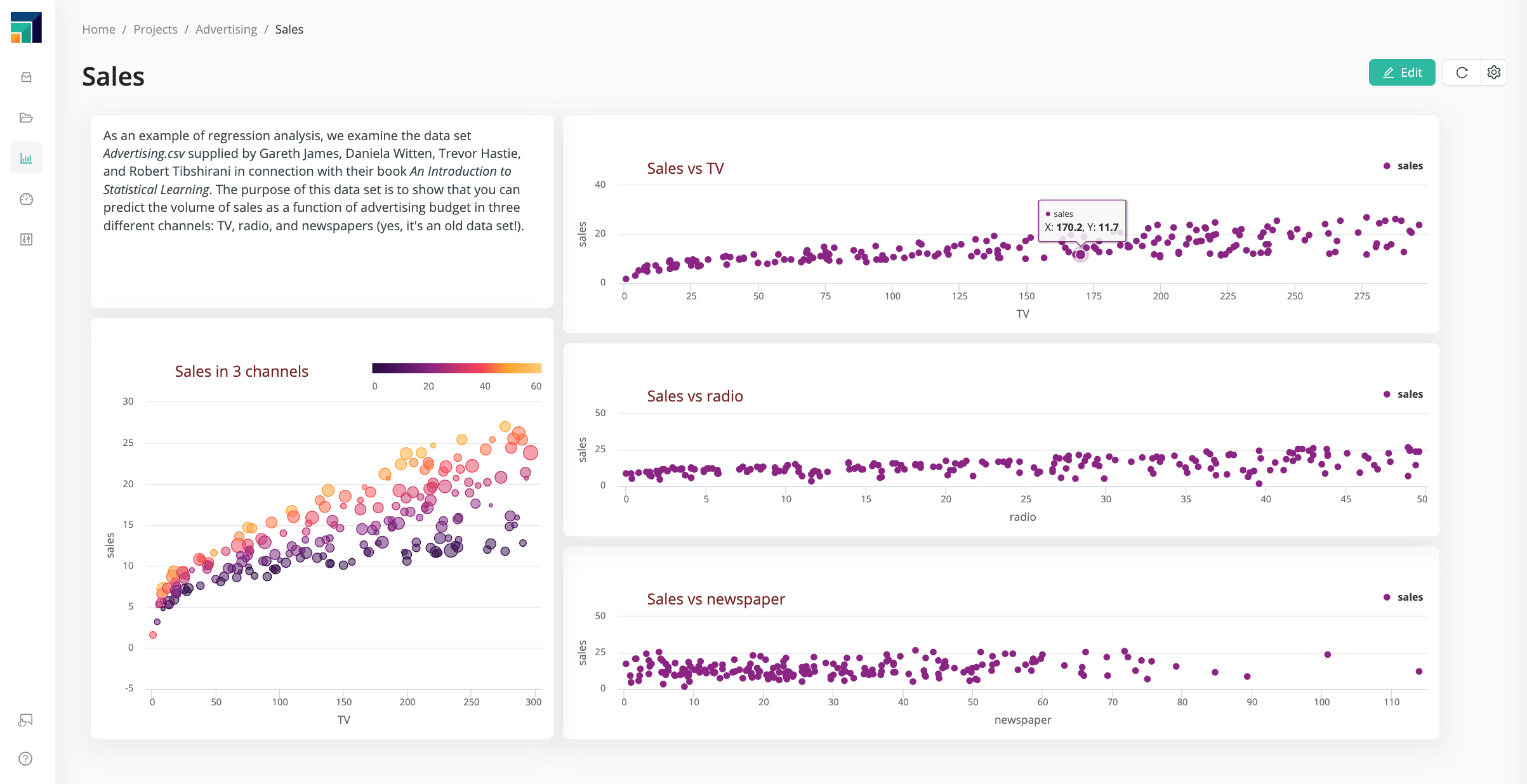

To present your data, models, and results as a dashboard, create an app!

To create an app, take the following steps:

• From theContenttab of a project, clickCreate App.
• Name the app, and clickCreate File.

Note that an app is always tied to a project.

Within the app interface, there are two UI elements:

• Tabs
• Widgets

Each tab can contain multiple widgets.

Widgets

ClickAdd Widget>Edit, andSelect a widget type. You have the following choices:

• Data
• Asset
• Text
• Icon
• Web image
• Settings

Data

Within the data widget, you can choose any data set connected to the project you selected, with the following visualizations.

Table

A regular data table.

Chart

The back end for charts is provided byHighcharts. RapidMiner provides a simplified user interface, but more detailed settings are available via theHighcharts API, accessible via the buttonEdit Advanced Settings.

{
"title":{
"text":“销售与电视”,
"align":"left",
"x":90,
"y":60,
"style":{
"color":"#772222"
}
}
}

Map

For details, see themaps documentation.

Pivot

选择(分类)行和有限公司lumns for your pivot table, and the (numerical) metric for each cell of the table.

Indicators

Asset

The assets connected to a project include:

• Models
• Weights
• Performances

Text

Regular text.

Icon

Common icons.

Web image

Select the URL of the image.

Settings
