Using the Twitter Connector
The Twitter Connector allows you to easily access Twitter data directly from RapidMiner Studio. The connector can search for phrases, tweets, or user profile information. This document will walk you through how to:
- Connect to your Twitter account
- Search for tweets containing a phrase
- Get tweets from a user
- Get account details of a Twitter user
- Get a list of friends or followers
The Twitter Connector uses an authentication mechanism calledOAuth 2.0. Instead of giving RapidMiner your username and password, you generate an access token that can be used by RapidMiner Studio to connect to your Twitter account. This token cannot be used by any other applications and helps keep your Twitter credentials secure.
Connect to your Twitter account
Create a new process

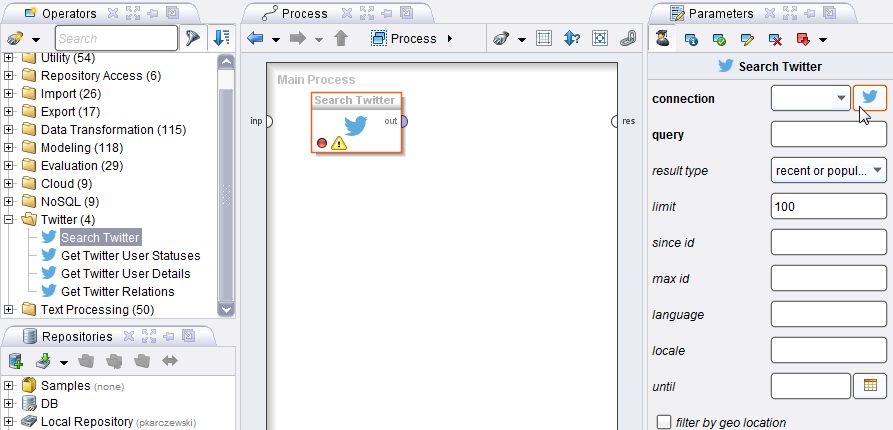

in RapidMiner Studio, drag theSearch Twitteroperator into theProcessview, and click on the operator. Click the
Twitter icon in theParametersview to open theManage Connectionsdialog. You can also open theManage Connections窗口Tools > Manage Connections.

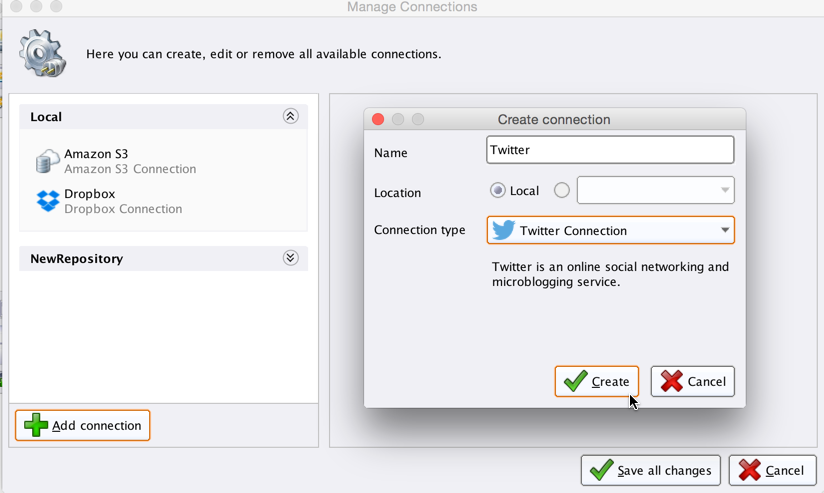

Click onAdd connection
in the lower left of the window, give a name to the new connection, and setConnection typetoTwitter Connection:
Click on
Createand select your new Twitter connection.To the right of theaccess tokenfield, click the
button to request an access token.Click onRequest access token
to open the Twitter website in your browser. If you are not already logged into your Twitter account, you will have to do so now. You can manually copy the URL by clicking onShow URL instead.

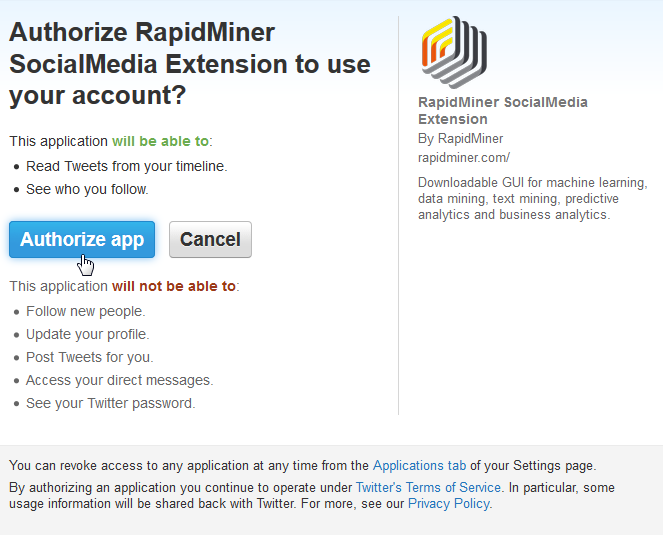

Allow RapidMiner to access your Twitter account by clicking onAuthorize app:

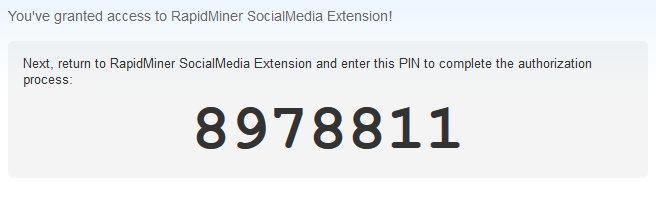

复制访问令牌上显示下一个页面:

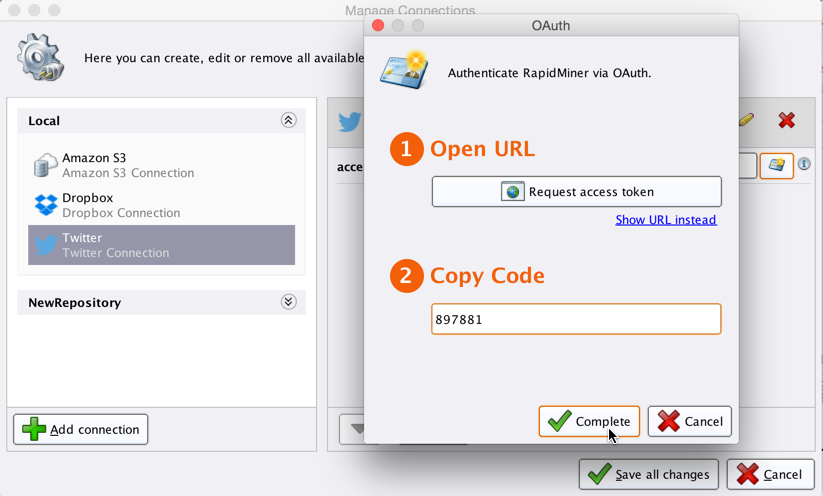

Return to RapidMiner Studio, enter the access token, and click
Complete:

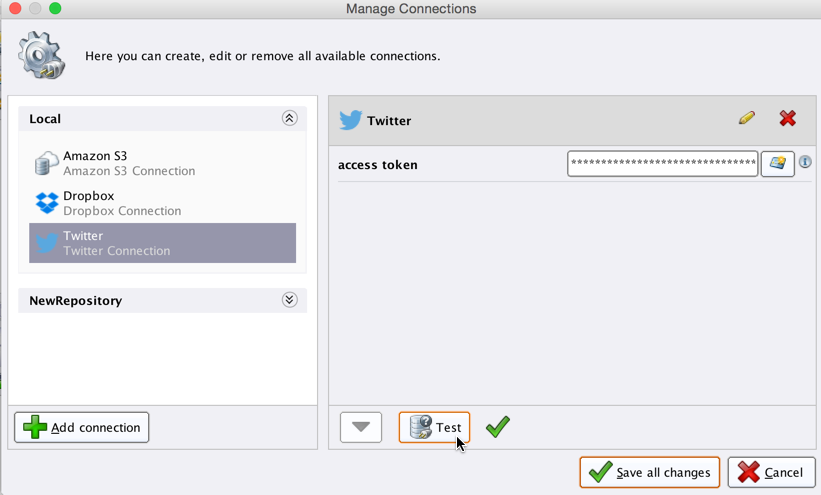

While not required, we recommend testing your new Twitter connection by clicking the
Testbutton at the bottom of theManage Connectionswindow:
If the test fails, check whether you copied the complete access token.
Close theManage Connectionsdialog by clicking on
保存所有更改.
in RapidMiner Studio, drag theSearch Twitteroperator into theProcessview, and click on the operator. Click the
Twitter icon in theParametersview to open theManage Connectionsdialog. You can also open theManage Connections窗口Tools > Manage Connections.
in the lower left of the window, give a name to the new connection, and setConnection typeto
Createand select your new Twitter connection.
button to request an access token.
to open the Twitter website in your browser. If you are not already logged into your Twitter account, you will have to do so now. You can manually copy the URL by clicking onShow URL instead.
Testbutton at the bottom of theManage Connectionswindow:
You have successfully connected RapidMiner Studio to your Twitter account! The next sections will show you how to use this Connector to search for different types of information from Twitter.
Search for tweets containing a phrase
With theSearch Twitteroperator you can find all tweets containing a specified phrase, along with those tweets` metadata.
Click on theSearch Twitteroperator in theProcessview.

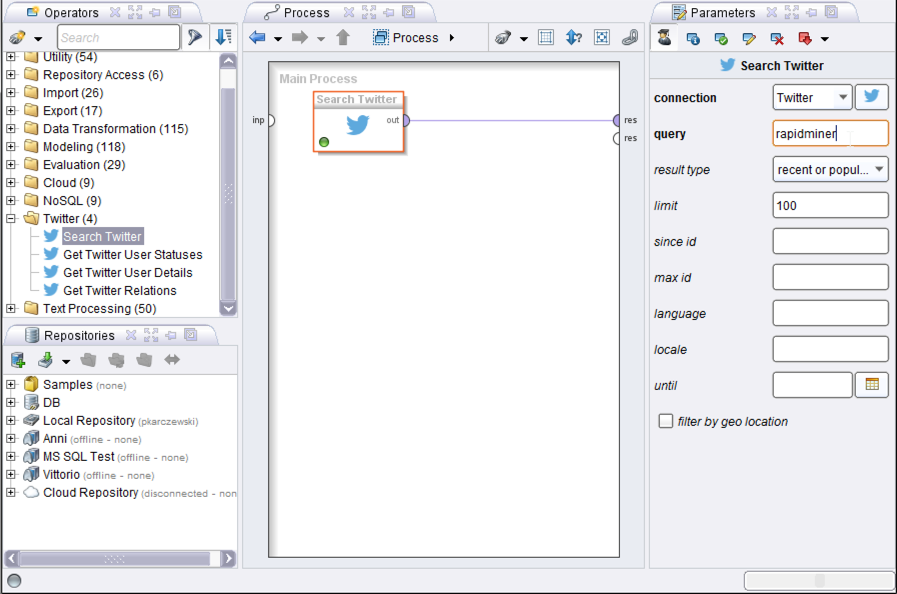

Select your Twitter connection from theconnectiondrop down menu in the operator parameters and fill in thequeryfield. The query is the phrase you will search Twitter for.

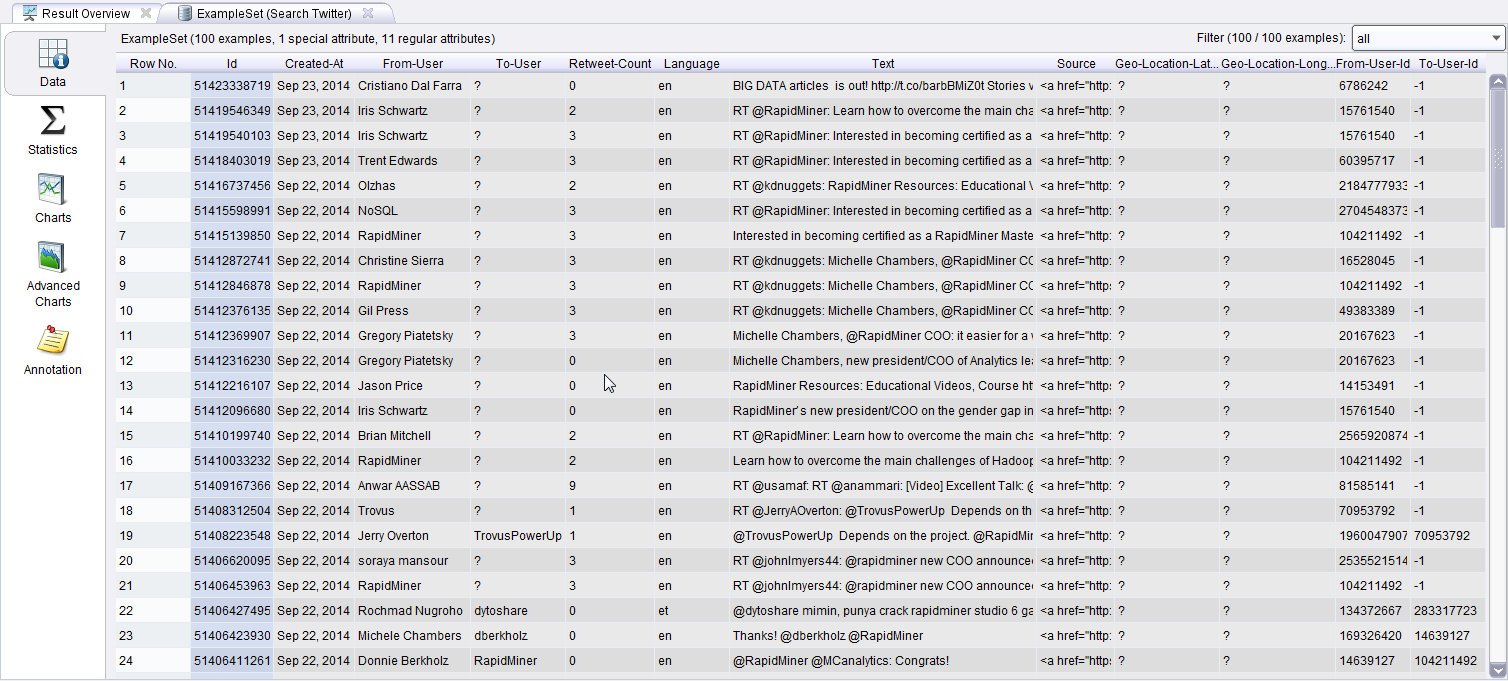

Run
the process and view the results:
As you can see, the results include the user who posted the tweet, the full text of the tweet, and much more!
the process and view the results:
Get tweets from a user
With theGet Twitter User Statusesoperator you can view all tweets from a specified user.

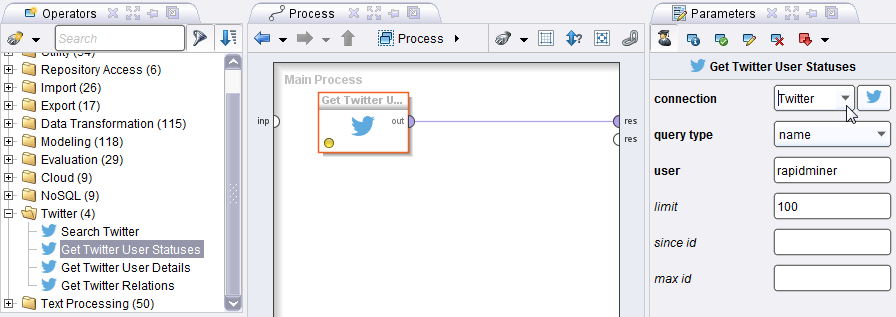

Click on theGet Twitter User Statusesoperator, select your Twitter connection in the operator parameters, and specify the username you are interested in. Note you do not need to include the "@"" symbol that usually prefixes Twitter usernames. Alternatively, change thequery typetoidand input the user ID number.

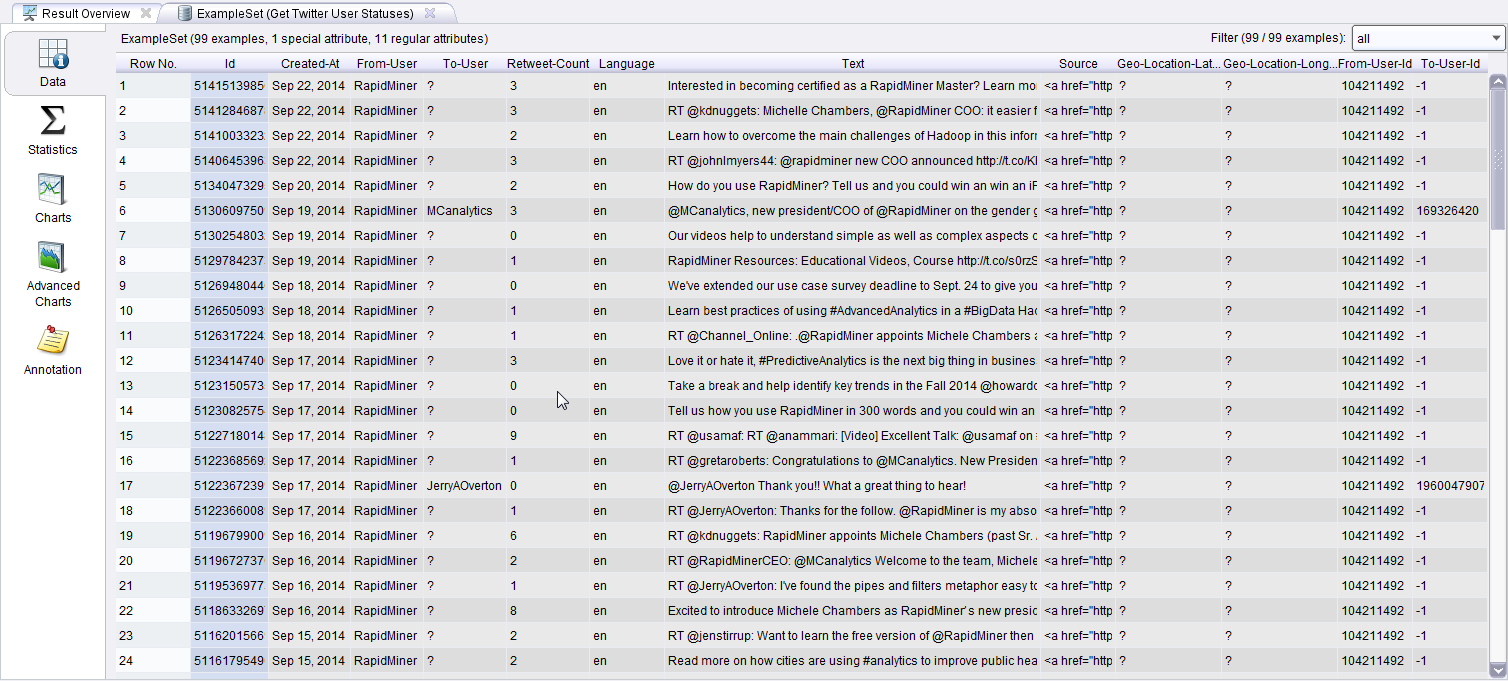

Run
the process and view the results:
Get account details of a Twitter user
TheGet Twitter User Detailsoperator can be used to find profile information for a specified username.

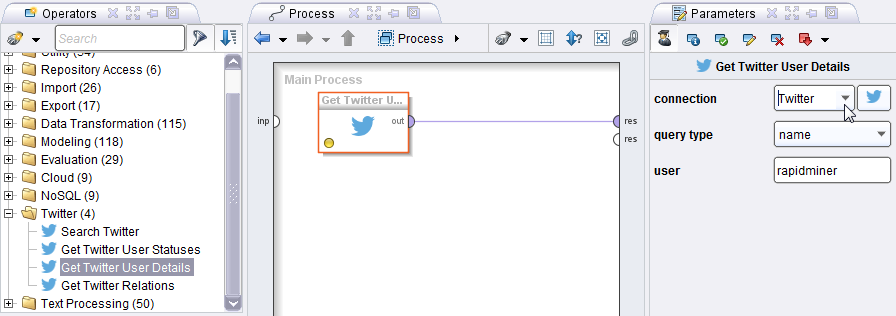

Click on theGet Twitter User Detailsoperator, select your Twitter connection in the operator parameters, and specify the user by username or ID number:
Run
the process and view the results:

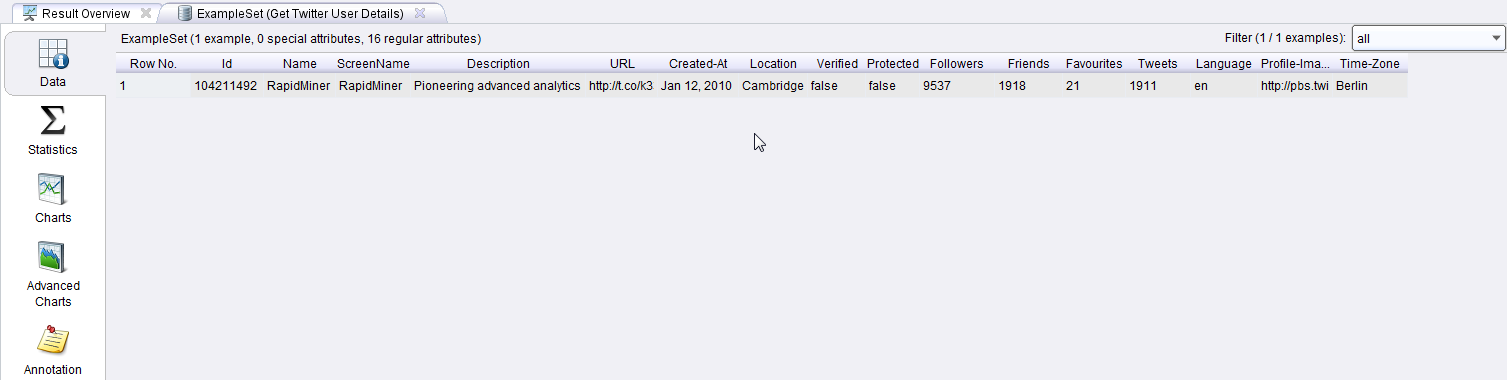

The table contains information such as account creation data and number of followers. To find out more about the user's followers, see the next section.
Get a list of friends or followers
TheGet Twitter Relationsoperator can be used to obtain a list of all friends or followers of a user.

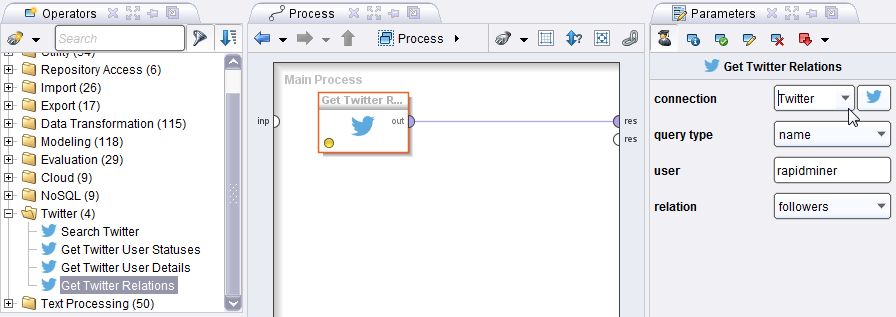

Click on theGet Twitter Relationsoperator, select your Twitter connection in the operator parameters and specify the user by username or ID number:
Run
the process and view the results:

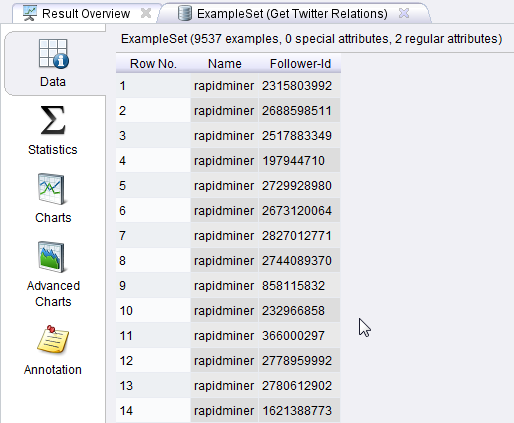

The first column contains the user you specified and the second column shows the ID numbers of their followers. With your knowledge of theGet Twitter User Detailsoperator fromearlier哟,u could use these ID numbers to get account details for the list of followers, too!
