Changing the Color Palette

RapidMiner Server is configured with a default color scheme. You can, however, select a different color scheme as your default palette and also configure color palettes individually for each web app.

To define your own color scheme:

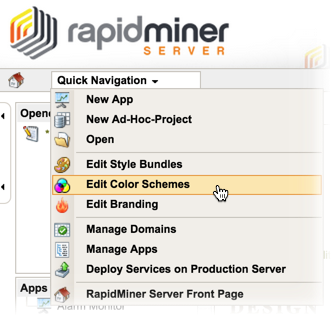

  1. From theQuick Navigationpull-down chooseEdit Color Schemes:

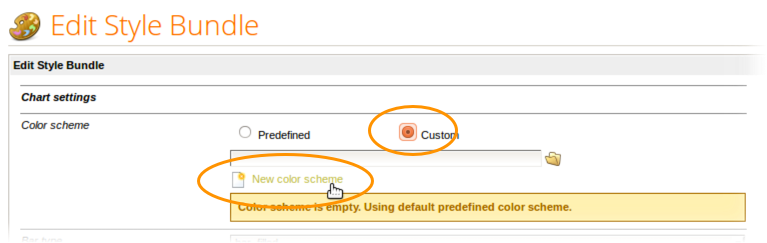

    Alternatively, you can change colors from within the Style Bundle editor. Simply open the style bundle, clickCustomas theColor scheme, and click on theNew color schemelink.

    Either way, the color scheme editor opens:

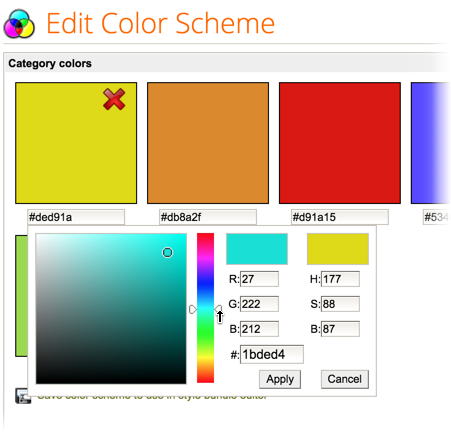

  2. Change a color by clicking on the square:

    Adjust the color by clicking in the color block, setting the slider, or entering the RGB (and hue) or hex values. The new and existing colors are previewed in a sample bar graph in the component preview to the right.

  3. To delete a color from the palette, click the reddefaultdelete icon in the color block.

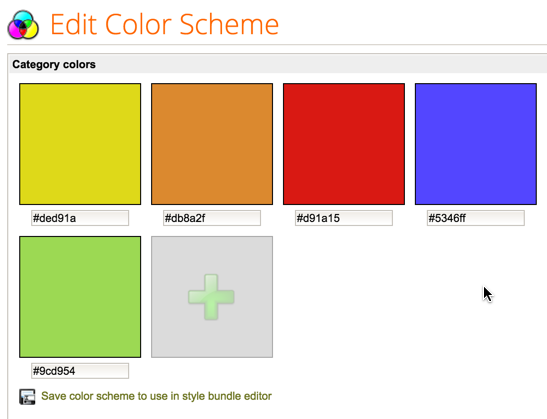

  4. To add a color, click the plus signplusin the gray undefined box:

    The new color begins as gray (hex #999999). Modify the gray in the same way you changed other color squares (above).

  5. When you are finished, click thesaveSave asicon to save the color scheme.

Applying a color scheme

Color schemes can be used as part of a defined style bundle by selectingcustomcolor. They are applied from theEdit Style Bundlepage. There are two methods for doing this.

  1. If you previously defined and saved the color scheme, you can browse to the saved location and select your palette by name:

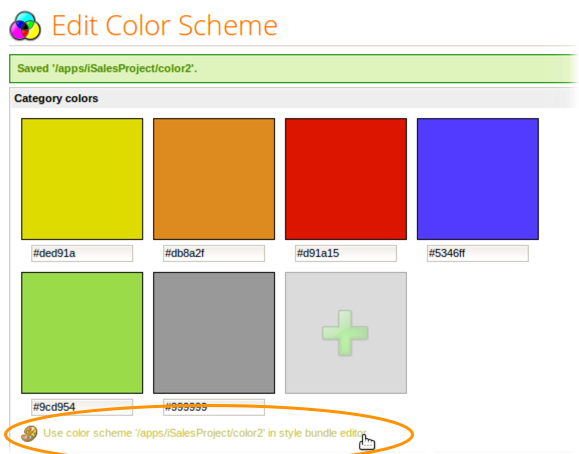

  2. If you have just created the palette, when you save an option to apply it appears:

    ClickingUse color scheme in style bundle editorreturns you to theEdit Style Pagewhere the file location of the new palette is supplied as a custom color scheme.
