Radoop Proxy

Radoop Proxy lets you tunnel all Radoop connections through a single machine residing on the edge of your secure Hadoop cluster and so it makes the networking configuration easier.

Radoop Proxy architecture

The Radoop Proxy is a server component that comes bundled with RapidMiner Server. It can accept connections from RapidMiner Studio and forwards these connections towards Hadoop forming a single access point of the cluster. It is typically installed on one of the secured cluster machines (can be an existing Hadoop node or a dedicated machine / edge node), so it resides on the same local network as the cluster nodes. Outside of the secured cluster only a dedicated port of the Radoop Proxy is available so making thedefault networking setupobsolete.

In order to use a Radoop Proxy, RapidMiner Studio users must be authenticated. Authentication is done by a RapidMiner Server that is connected to the Radoop Proxy.

The connection between RapidMiner Studio users and Radoop Proxy can be easily secured with SSL if the certificates for the machine hosting the proxy is available. Since bothRapidMiner服务器用户and Hadoop users can be managed in a central LDAP server, this enables a centralized and convenient user management as well.

Setting up a Radoop Proxy Connection

1. Create a newRadoop Proxy Connectionfrom RapidMiner Studioorfrom RapidMiner Server. The fields on the Setup tab are explained below:



   Field	Description
   Radoop Proxy Server host	IP address or hostname of the Radoop Proxy server
   Radoop Proxy Server port	Radoop Proxy Server port. Default is 1081
   Use Enterprise SSO	Use the Enterprise SSO token from the parent Repository. Only displayed with Radoop Proxy Connections that are in Repository Panel. Should only be used with a Radoop Proxy Server configured with SAML authentication seeCustom Radoop Proxy Installationfor details.RapidMiner Server userandRapidMiner Server passwordare disabled when this feature is used.
   RapidMiner Server user	Username for authenticating. This is disabled whenUse Enterprise SSOis checked.
   RapidMiner Server password	Password to use for the connection. This is disabled whenUse Enterprise SSOis checked.
   Use secure (SSL) connection	Use SSL for the proxy connection. SeeRadoop Proxy is securedfor details. If your certificate is NOT well-known then you need to fill inKeystore fileandKeystore password.
   Keystore file (SSL)	Keystore file that contains the SSL cert to use, if cert is well known, you can leave this empty. This is disabled whenUse secure (SSL) connectionis unchecked.
   Keystore password (SSL)	password to use to unlock the keystore, if keystore has no password, you can leave this empty. This is disabled whenUse secure (SSL) connectionis unchecked.

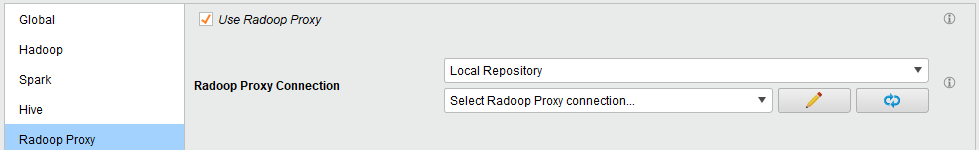

2. In the连接menu, selectManage Radoop Connections, edit your connection by clickingConfigure, and on theRadoop Proxytab checkUse Radoop Proxy:



3. Select the location of your proxy definition from the first dropdown selector in theRadoop Proxy Connectionsection. ChooseLocal Repositoryfor connection set up in Studio or the name of the Server repository in case of remote connections.

4. Select the connection from the second dropdown selector in theRadoop Proxy Connectionsection. In case of server locations you may need to click on theRefreshbutton to sync the connections from the Server to Studio. You also have the option to click onEditbutton to edit an existing or to create a new Radoop Proxy connection right from this screen.
