Amazon Elastic MapReduce (EMR) 5.x

There are multiple options to connect to an EMR cluster

• If RapidMiner Radoop does not run inside the EMR cluster's connected VPC:
  • via SOCKS proxy
  • via VPN
  • viaRadoop Proxy(Recommended)
• Direct access (eg: usingAmazon WorkSpaces)

The following steps follow Radoop Proxy recommendation, but you can also find step-by-step guides of the additional steps for other two remote methods below. For direct access setup please follow the Radoop Proxy guide but skip the parts describing the setup of the Radoop Proxy itself.

Connecting to a firewalled EMR cluster using Radoop Proxy

The following steps will guide you through starting and configuring an EMR cluster, and accessing it from RapidMiner Radoop via a RapidMiner Radoop Proxy that is running on the EMR cluster's Master Node.

1. If you doesn't already have a running EMR cluster, then use the advanced options on AWS Console for creating your EMR cluster. Select a5.xversion forEMR release. Make sure thatHadoop,HiveandSparkare selected for installation in the Software Configuration step. Complete the rest of the configuration steps on AWS Console, then start the cluster.

2. SSH onto the Master node (once its status became eitherRUNNINGorWAITINGon the EMR page of the AWS console) SSH instructions can be found on the Summary tab of your EMR cluster. Make note of the , this will be needed later for the Radoop Proxy configuration in RapidMiner Studio. (eg:ec2-35-85-2-17.compute-1.amazonaws.example.com)

3. Obtain the internal IP address of the Master node (e.g.10.1.2.3) via thehostname -icommand and make note of it as this will be needed for theRadoop Connection. (Private IP and DNS information can also be obtained from the AWS Console on the EMR Cluster details page in the Hardware section checking the "EC2 Instances")

4. Perform the following commands to setup Spark on the cluster for Radoop. For Spark 2.x versions, the best practice is to upload the compressed Spark jar files to HDFS from the preinstalled location from the master node. (This is crucial as EMR usually installs relevant libraries onto the file system of the master node only, whereas worker nodes also depend on them) On recent versions of EMR 5.x all of this can easily be done by issuing the following commands on the EMR master node:

   #Setup Spark 2.* libraries from the default install location cd /usr/lib/spark zip /tmp/spark-jars.zip --junk-paths --recurse-paths ./jars hdfs dfs -mkdir -p /user/spark hdfs dfs -put /tmp/spark-jars.zip /user/spark #Copy PySpark libaries onto hdfs hdfs dfs -put ./python/lib/py4j-src.zip /user/spark hdfs dfs -put ./python/lib/pyspark.zip /user/spark #Copy SparkR libaries onto hdfs hdfs dfs -put ./R/lib/sparkr.zip /user/spark #List all the files that have been put onto hdfs in the /user/spark directory hdfs dfs -ls /user/spark

   If everything went well the output should be very similar to this:

   [hadoop@ip-172-31-18-147 spark]$ hdfs dfs -ls /user/spark Found 4 items -rw-r--r-- 1 hadoop spark 74096 2019-07-25 17:47 /user/spark/py4j-src.zip -rw-r--r-- 1 hadoop spark 482687 2019-07-25 17:48 /user/spark/pyspark.zip -rw-r--r-- 1 hadoop spark 180421304 2019-07-25 17:47 /user/spark/spark-jars.zip -rw-r--r-- 1 hadoop spark 698696 2019-07-25 17:48 /user/spark/sparkr.zip

5. Follow the instructions in theStandalone Radoop Proxysection. Start the Radoop Proxy after the configuration has been completed.

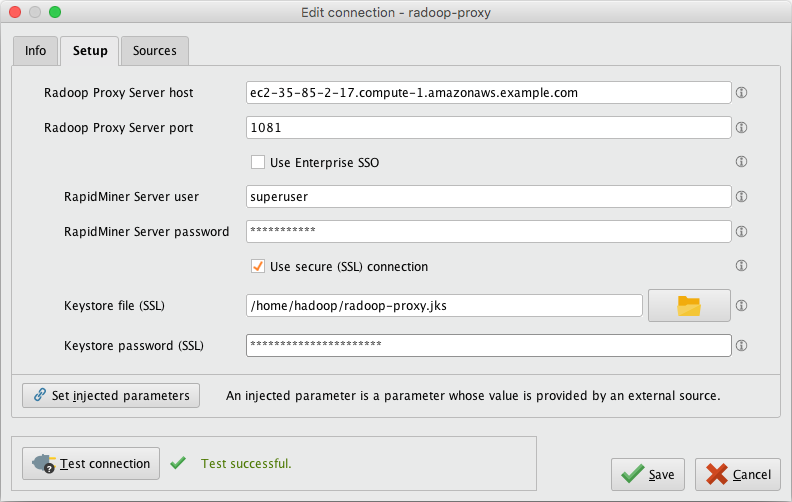

6. RapidMiner工作室开始,创建一个新的Radoop公关oxyconnection. Use the (from step 2) as theRadoop Proxy Server host. Make sure to test the Proxy connection via theTest Connectionbutton.



7. In RapidMiner Studio create a newRadoop Connection用以下值(你可以供应al configuration parameters as needed). Advanced Radoop users can alternatively import theExample Radoop Connection xml template for EMRbelow which includes all required settings listed in this table.

   Property	Value
   Hadoop Version	Amazon Elastic MapReduce (EMR) 5.x
   Hadoop username	hadoop
   NameNode Address	(e.g.10.1.2.3)
   NameNode Port	8020
   Resource Manager Address	(e.g.10.1.2.3)
   Resource Manager Port	8032
   JobHistory Server Address	(e.g.10.1.2.3)
   Hadoop Advanced Parameters	Add key/valuedfs.client.use.datanode.hostnamevalue offalse
   Spark Version	Corresponding Spark version (eg:Spark 2.3.1+)
   Use custom PySpark archive	Checked
   Custom PySpark archive paths	Add two entrieshdfs:///user/spark/py4j-src.zipandhdfs:///user/spark/pyspark.zip
   Use custom SparkR archive	Checked
   Custom SparkR archive path	hdfs:///user/spark/sparkr.zip
   Hive Server Address	(e.g.10.1.2.3)
   Hive Username	hive
   Use Radoop Proxy	Checked
   Radoop Proxy Connection

   NotePlease consider fine tuning Spark memory settings as discussedhere.

 Amazon EMR Connection Example 9.4.0  <Master node internal IP address eg 10.1.2.3> <Master node internal IP address eg 10.1.2.3> <Master node internal IP address eg 10.1.2.3> <Master node internal IP address eg 10.1.2.3> T default 10000 8032 8020 10020 F   hadoop-emr-5.x F T F T    auth    F  F SPARK_23_1 T T hdfs:///user/spark/pyspark.zip,hdfs:///user/spark/py4j-src.zip hdfs:///user/spark/sparkr.zip hdfs:///user/spark/spark-jars.zip dynamic 30   dfs.client.use.datanode.hostname false T      spark.driver.extraJavaOptions -XX:+PrintGC -XX:+PrintGCDateStamps T   spark.driver.memory 2000 T   spark.executor.extraJavaOptions -XX:+PrintGC -XX:+PrintGCDateStamps T   spark.executor.memory 2000Mb T   spark.logConf true T    hadoop hive hive2  F F   hive_0.13.0 yarn * F T

Save theRadoop Connectionand performQuick/Full Testsaccordingly.

Connecting to an EMR cluster using SOCKS Proxy

Connecting to an EMR cluster over VPN
